R Series LED Display

Paper-slim and lightweight design
CNC Aluminum diecasting cabinet,
7kg lightweight and 87mm ofthickness.

Neat cabling system
Cable free modules connect to power box by connection pins to enable neat cabling system,user friendly universal
module for quickly remove and replace.


Front & Rear access maintenance
Magnets module can be easily removed by a suction cup tool;
Cabinet is front or rear accessible.

Multi-functional Application
Curved system, curvature 10 degrees concave or convex Multi-
functional design for staging, flooring and other permanent led
signage.

Hanging & Stacking &
Permanent installation Options
Indoor or Outdoor Rental (Hanging & Stacking) & Permanent
installation application; Waterproof rate Ip54, Brightness 5000cd/㎡.

Technical parameters of rental led display
Model
| P1.95 | P2.5 | P2.6 | P2.97 | P3.91 | P4.81 |
Pixel pitch(mm) | 1.95mm
| 2.55mm | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Application Environment | indoor | indoor | indoor | indoor | indoor /outdoor | indoor/outdor |
Pixel density(pixel/㎡) | 262984 | 160000 | 147928 | 113367 | 65410 | 43222 |
LED panel size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
Refresh rate(HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥≥3840 | ≥3840 |
Cabinet size | 500mm*500mm 500mm*1000mm | 500mm*500mm 500mm*1000mm | 500mm*500mm 500mm*1000mm | 500mm*500mm 500mm*1000mm | 500mm*500mm 500mm*1000mm | 500mm*500mm 500mm*1000mm |
Brightness | 800cd-1200cd | 800cd-1200cd | 800cd-1200cd | 800cd-1200cd | 800cd-1200cd 3500cd-4500cd | 800cd-1200cd 3500cd-4500cd |
Average power(w/㎡) | ≤210 | ≤210 | ≤210 | ≤210 | ≤210 | ≤230 |
Maximum power(w/㎡) | ≤660 | ≤650 | ≤640 | ≤650 | ≤650 | ≤650 |
Maintenance method | Front or behind | Front or behind | Front or behind | Front or behind | behind | behind |

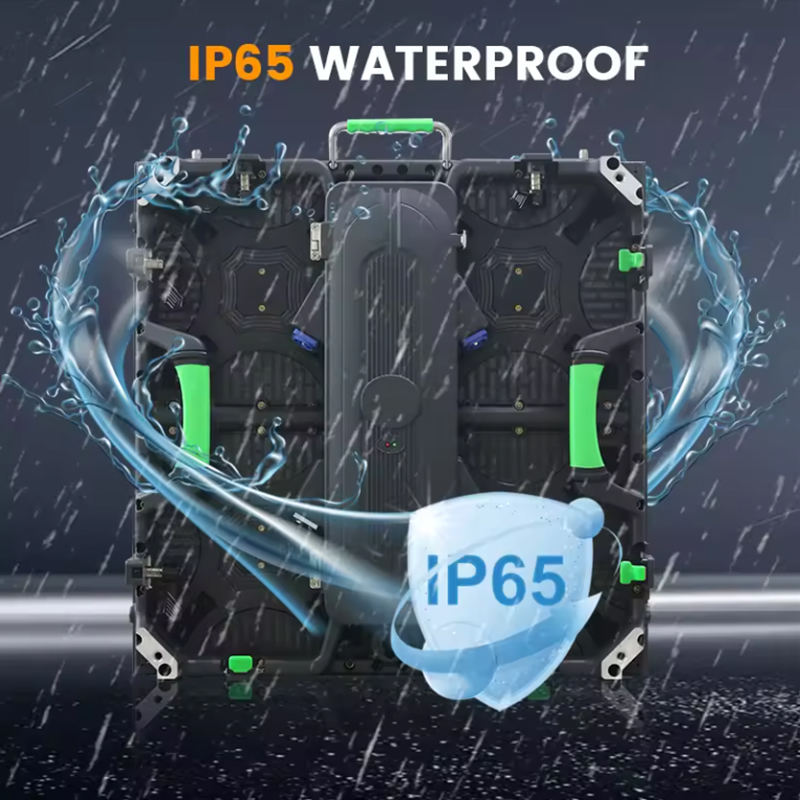

Waterproof level | IP32 | IP32 | IP32 | IP32
| IP32/IP65 | IP32/IP65 |
Input voltage | AC100V-240V | AC100V-240V | AC100V-240V | AC100V-240V | AC100V-240V | AC100V-240V |
Service life | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | AC100V-240V |
